Sewage pump

Sewage pumps are designed to efficiently handle and transport wastewater containing solids and sludge. They deliver reliable performance with robust construction and are suitable for continuous and heavy-duty operation. These pumps are ideal for sewage treatment plants, residential and commercial buildings, industrial facilities, and other applications where safe and effective wastewater disposal is required.

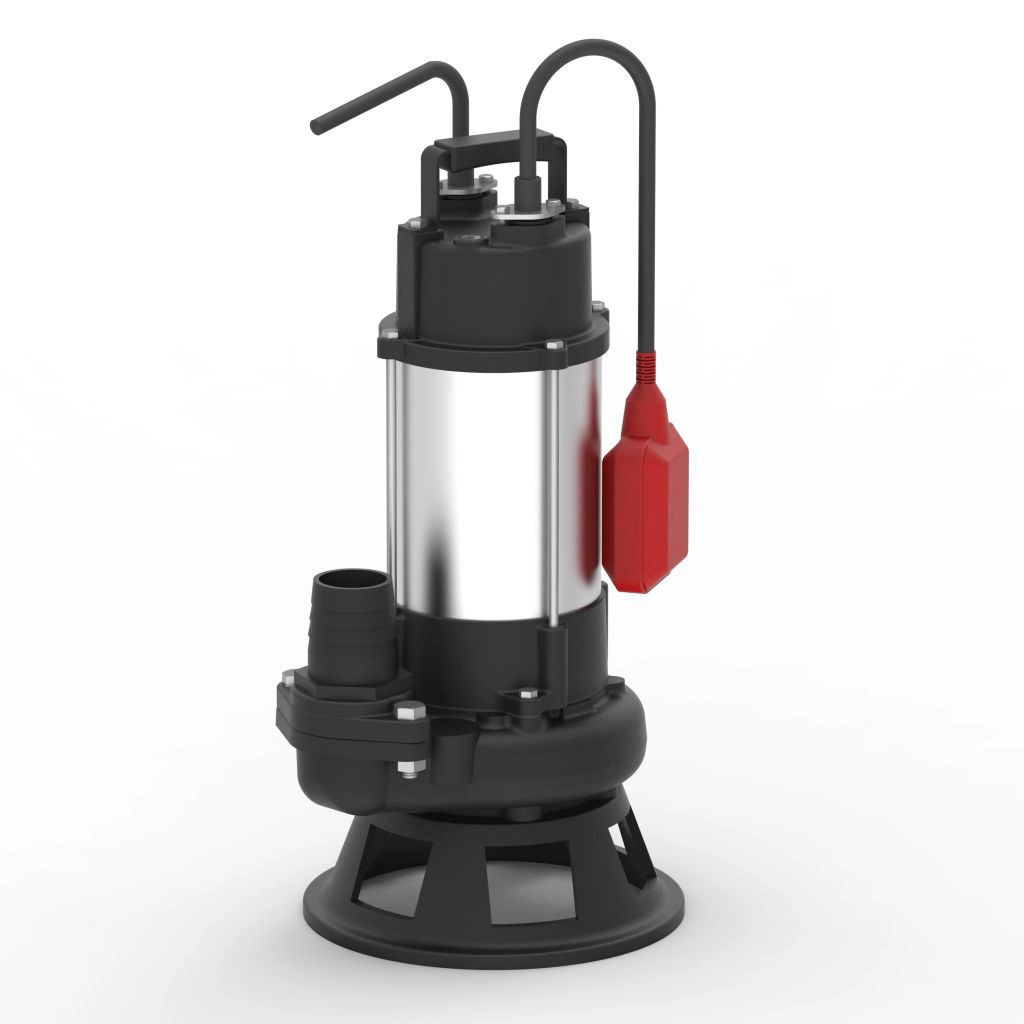

MC 1.0 HP

Specifications

  • Power:0.5 HP upto 3.0 HP
  • Head:30 upto meters
  • Pump size :Upto 3 inches
  • Phase: Single Phase & Three Phase (Available with and without float)

Features

  • The pump volute is made of cast iron conforming to IS 210 / ISO 186 grade FG 260, featuring a vertical discharge outlet
  • Equipped with a non-clog, semi-open impeller manufactured from cast iron (standard), CF8, or CF8M, suitable for pumping liquids up to 50°C
  • The pump shaft is constructed from stainless steel in accordance with ASTM A582, grade AISI 410
  • Sealing is achieved through a double mechanical shaft seal—carbon/ceramic/NBR/AISI 304 for pumps up to 1 HP, and SiC/SiC/Viton/AISI 316 on the pump side for pumps above 1 HP
  • Close-coupled dry submersible motor with Class F insulation, IP68 protection, 2900 RPM speed, epoxy-sealed cable entry, suitable for S1 duty in fully submerged conditions and S3 duty for partially submerged operation
  • All cast iron components are CED (cathodic electrodeposition) coated to provide uniform corrosion resistance with a controlled coating thickness of 20–30 microns

Applications

Drainage of sewage from building basements, hotel facilities, and factory wastewater; removal of sewage from industrial process units; emptying of septic tanks, cesspits, and sewage pump stations; and pumping of surface and drainage water from garages and sprinkler systems.
