Grinder Pump

Grinder pumps are designed to handle and grind wastewater containing solids, turning it into a fine slurry for easy and efficient pumping. They provide reliable performance with durable construction and are suitable for continuous operation in demanding conditions. These pumps are ideal for residential and commercial sewage systems, septic tanks, wastewater treatment plants, and other applications where solid-laden wastewater needs to be transported through narrow pipelines or to higher elevations.

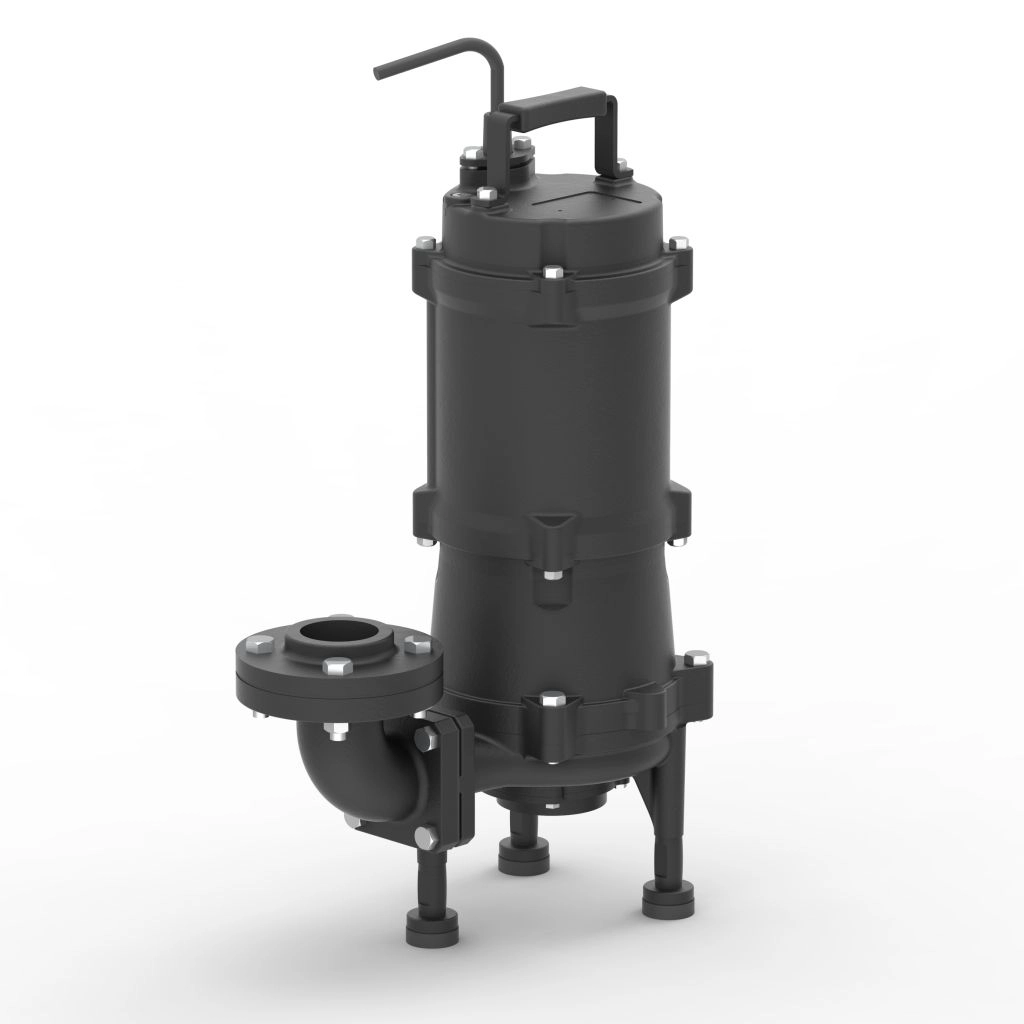

MC 1.0 HP

Specifications

  • Power:0.5 HP upto 3.0 HP
  • Head:30 upto meters
  • Pump size :Upto 3 inches
  • Phase: Single Phase & Three Phase (Available with and without float)

Features

  • The pump volute is made of cast iron (grade FG260) as per IS 210 / ISO 186 standards, featuring a vertical discharge outlet and a grinder-type vortex impeller suitable for pumping liquids up to 50°C
  • Equipped with an integrated radial cutter and cutter ring made from corrosion-resistant AISI 440 material, with a hardness of 55–60 Rc
  • Fitted with a double mechanical shaft seal made from SiC/SiC/Viton/S.S 316 at the pump end
  • Close-coupled with a dry submersible motor featuring Class F insulation, IP68 protection, 2900 RPM, epoxy-sealed cable entry, S1 duty for fully submerged use and S3 duty for partially submerged operation
  • All cast iron components are CED-coated (cathodic electrodeposition) for corrosion resistance, with a uniform coating thickness of 20–30 microns

Applications

Used in pressurized sewage systems, these pumps are ideal for draining wastewater from individual homes, apartments, buildings, resorts, and motels. They are also suitable for transferring wastewater from commercial complexes, industrial facilities, wastewater sampling stations, and small hospitals. Additionally, they support wastewater drainage for schools, parks, and other public institutions, as well as general transfer of various types of sewage and wastewater.
