Mud Pump

Mud pumps are designed to efficiently handle and transfer thick, slurry-like fluids containing sediments and heavy particles. They deliver reliable performance with robust construction and are suitable for continuous operation in harsh and demanding conditions. These pumps are ideal for construction sites, mining operations, drilling applications, and industrial processes where mud, sludge, or slurry needs to be pumped over long distances or to higher elevations.

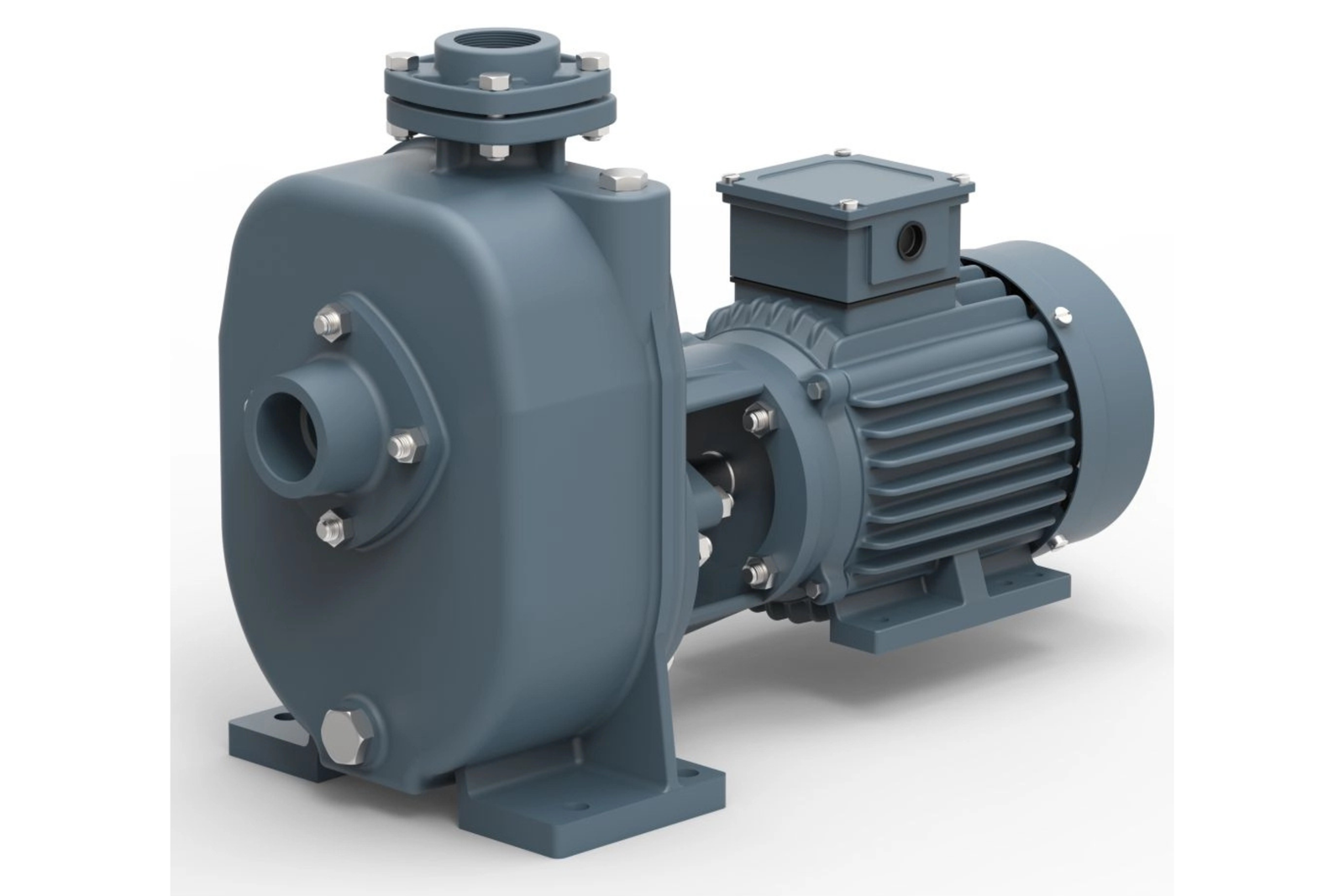

MC 1.0 HP

Specifications

  • Power:0.5 HP upto 5.0 HP
  • Head:24upto meters
  • Phase: Single Phase & Three Phase

Features

  • The pump casing is made of cast iron (grade FG 260) as per IS 210 / ISO 186 standards, with axial suction and radial discharge ports
  • Equipped with a non-clogging open-type impeller made from Cast Iron FG 260 (standard), CF8, or CF8M
  • Pump shaft sealing is provided with gland packing, except for pumps up to 1 HP which use a mechanical shaft seal
  • The motor is compatible with both 3-phase 415V, 50 Hz and single-phase 240V, 50 Hz power supply
  • Back pull-out design allows the rotating assembly to be removed for servicing without disconnecting the suction and discharge piping

Applications

Used wherever self-priming capability is needed, such as in marine applications for pumping water from docks, ports, and vessels. In industrial settings, they are used for handling petroleum products, chemical effluents, sewage, ash-water, and similar fluids. In civil construction, they are ideal for dewatering foundations, trenches, and pits. They are also used in mobile machinery for cooling water in marine engines and excavators, and in public utilities for sewage pumping.
